Hospital Furniture

Examination couch L-6’ W- 2’ H -2.5’ Attached foam thickness 2” head incline & decline single side drawer 12”

TECHNICAL SPECIFICATIONS

• Made by Solid wood constructed frame work is fitted with well-padded 40mm thick top & top is divided in two sections. Drawer made by from laminated ply board and painted Natural wood-polish finish
• Size: Top 182 cm long x 61cm wide x 80 cm high
• Backrest: 46cm long & can be continuously adjustable in height for desired position.
• Storage: One drawer & One small cupboard is provided underneath the top for storage

Traction Bed Four-Fold with drawer

TECHNICAL SPECIFICATIONS

• Complete Bed length with Traction Plate form Length 237 cm ,Width 60cm Height 76cm including mattress
• The frame and leg all made of heavy duty crc
• (Cold Rolled Coil ) pipe with Powder coated finish.
•  The top made mattress of High-density stretchy sponge and Artificial pu synthetic Leather
• 4 pcs adjustable levelling feet for stability on uneven floors.
• 2 pcs gas spring adjustable  & 1 Stainless contact for more information 9891242824 Steel rod head board section  ,
• 2 pcs gas spring & 1 Stainless Steel rod adjustable foot board section
•  head board section incline adjustable: 0° to 85 ° (±5°)
•  Leg board section incline adjustable: 0° to 85° (±5°) & decline 0° to 45°
• Sliding distance of the bed is at least 22 cm.
• Bed sliding lock handle
•  Use of permanent lubricated bearings for bed sliding
• Inbuilt one wooden  drawer  length 16” depth 18” and height  16”
• Flexion Stool :1 No

Technical Specification

• Made of heavy duty crc pipe , with permanent lubricated bearings & Powder coated finish
• Upholstered Top Size : 190cm long x 68cm wide , 2" hard density urethane foam mattress top
• Removable Padded footboard. Size 20”/18”
• Straps: Three, 10cm wide Straps to hold the patient
• Height: Base / Top adjusts in Height from 65cm to 100cm
• Tilt Angle: Horizontal to 90 degree vertical contact for more information 9891242824 in 60seconds
• Motors: Unit is fitted with Two Motor actuators for Lift & Tilt.
• Control; Controlled by a wire remote Hand Control Switch (4 Buttons) with remote.
• 1st Motorized Actuator: Height Adjustment.  & 2nd Motorized Actuator: Tilt Angle Adjustment (0º to 90º)
• Load Bearing: Heavy-duty electric Motor that safely accommodates up to 220 kg load
• Motors: Unit is fitted with one Motor power of 8000 Newton  actuators Tilt.
• Mobility: Mounted on 4 locking 5”casters.
• Utility Tray: Laminated surface for ADL activity
• Power: Works on 210 -240 V ~; 50/60 Hz

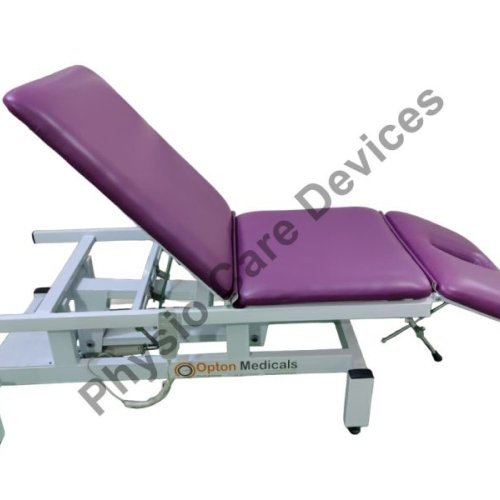

Physio Hi Low Treatment Couch three section Electric

Technical Specification

• Made of heavy duty mild steel square pipe with Powder coated finish, with welded steel rod-mesh at the top for complete suspension with slings & ropes
• Construction: Tubular steel frame with 6mm thick Rod-mesh at top and on upper sides. Legs fitted With Rubber/PVC Shoes.
• Sizes: Overall sizes 210cm long x 110cm contact for more information 9891242824 wide at the base, 50cm wide at the top & 190cm high.
• Suspension Gear: Comprising 7 canvas slings (4 Limb, 2 Trunk & 1 Head), 4 Single Hook Ropes, 2 Single Pulley Ropes, & 2 Double Pulley Ropes with Necessary Hooks & Cleats, 8 Graduated Springs of Different Marked Tension. 2 Ankles Straps and 4 ''S'' Hooks.
• Couch for suspension activities, size 194 cm length x 90cm width x 50cm height, high density 2” foam padded. An extra wide couch for use with suspension frame. Couch has a shelf to store accessories.
• Natural wood polish finish.

TECHNICAL SPECIFICATIONS

• Complete Bed length with Traction Plate form Length 232 cm ,Width 60cm Height 80 cm including mattress
• The frame and leg all made of heavy duty
• Metal square pipe with Powder coated finish.
•  The top made mattress of High-density stretchy sponge and Artificial Leather
• 4 pcs adjustable levelling feet for stability contact for more information 9891242824 on uneven floors.
• 1 pcs gas spring adjustable  & 1 Stainless Steel rod head board section  ,
• head board section incline adjustable: 0° to 85 ° (±5°)
• Sliding distance of the bed is at least 18 cm.
• Bed sliding lock handle
•  Use of permanent lubricated bearings for bed sliding
• Flexion Stool :1 No

Technical Specification

• Made of heavy duty crc pipe , with permanent lubricated bearings & Powder coated finish
• All mechanism cover crc metal sheet with power coating
• Upholstered Top Size : 190cm long x 68cm wide , 2" hard density urethane foam mattress top
• Removable padded footboard. Size 20”/18”
• Straps: Three, 10cm wide Straps to hold the patient
• Load Bearing: Heavy-duty  electric Motor that safely accommodates up to 180 kg load
• Range of Tilt Adjustable from 0 to 90 degree
• Motors: Unit is fitted with one Motor power of 6000 Nuton actuators Tilt.
• Control; Controlled by a wire remote Hand Control Switch (2 Buttons) for Tilt Angle Adjustment (0º to 90º)*
• Mobility: Mounted on 4 locking 5”casters.
• Utility Tray: Laminated surface for ADL activity
• Power: Works on 210 -240 V ~; 50/60 Hz

Technical Specification

• Made of heavy duty crc metal sheet powder coated finish
• Mobility: Mounted 4 casters with 2 brakes.
• Disassembly structure, easy for fix and save freight, save space, flexible operation.
• It can be used for storing and transporting materials
• Convenient for loading and unloading materials.
