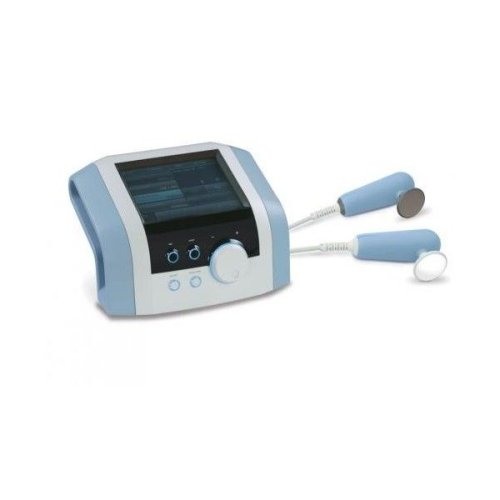

Elite Therapy Machine

Targeted Radiofrequency therapy transfers high frequency electromagnetic energy through the tissues of the body creating selective tissue hyperthermia; It has been scientifically proven to bring therapeutic effects such as immediate and intense pain relief, muscle relaxation, edema reduction and supporting tissue regeneration and healing

• The Unit should have Built in Feedback and safety feature, Dynamic Impedance Control TM
• Display 8.4“colour touch screen
• Should have QUICK protocols
• Should have Body Parts Navigation Feature.
• System should come with In Built Preset protocols; User therapeutic protocols; provision for Patient database
• Should have Maximum power: 320 W
• Operating frequency 480 - 520 kHz
• Operating mode continuous / pulsed
• Outputs For capacitive / resistive / neutral Electrode
• Compact plastic electrode insulation ensuring Therapist safety
• The Electrodes should be supplied with the following sizes; Capacitive electrodes 4 sizes (20, 30, 50, 70 mm); Resistive electrodes 4 sizes (20, 30, 50, 70 mm); Neutral electrode metallic (160 × 240 mm)
• The unit should also be supplied with large adhesive neutral electrode-F7805(5 nos)
• The Unit should be supplied with the following Standard accessories - Capacitive applicator, Resistive applicator, 4 capacitive electrodes, 4 resistive electrodes, 1 neutral Electrode, Cream, Patient cable for capacitive electrode, Patient cable for resistive contact for more information 9891242824 electrode, RF cream – 1
• The device must be supplied with Trolley with castors & at least 5 shelfs for storing accessories
• Should be European CE certified / International Quality controls
• Mains supply 100–240 V, 50–60 Hz
• Should have maximum input of 400 VA
• Device should be of class II type BF according to IEC 60601-1 and classification according to MDD93/42/EEC should be IIa
• Should have degree of protection IP20 according to EN 60529.
• The weight of device should be 5 kgs and with accessories it should be approximate 10 kgs.
• The max output current and voltage should be max 1.8 A +/- 20% and 180V +/-20% respectively.
• Capacitive/resistive/neutral applicator should have colour codes to identify them and also there should be visual identification on the applicator when selected for treatment to avoid wrong selection of applicator.
• The capacitive/resistive applicator should be ergonomic easy to hold with proper grip.
• The unit should have external port for easy updation of software and for service support.
• The device should have continuous/ contact for more information 9891242824 pulsed operation both for capacitive and resistive modes with duty factor setting of 1 to 100%
• There should be possibility to set pulse time or pause time in seconds from 1-10

Standard accessories

• Price includes: set of capacitive and resistive electrodes (4 pcs. of each), resistive applicator, capacitive applicator, holders for the applicators, neutral electrode and patient cable for neutral electrode, conductive cream, touch screen pen pointer
